産品描述

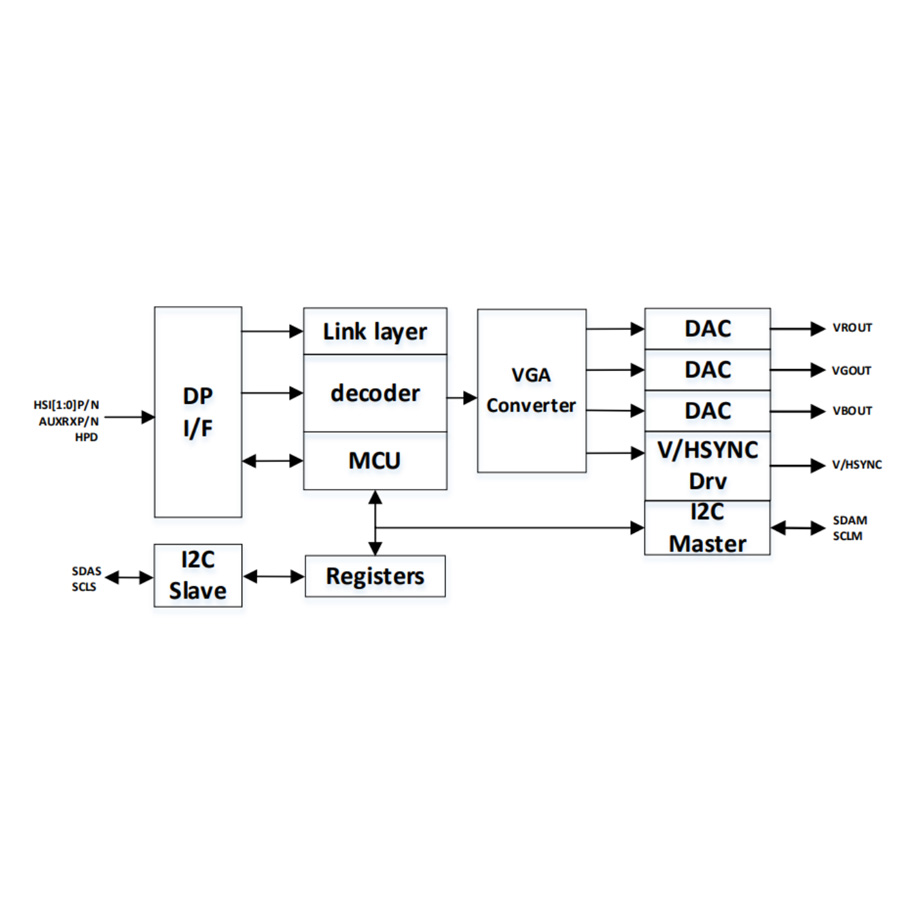

The NCS8822 is a low-power DisplayPort-to-VGA converter combines a DisplayPort input interface and an analog RGB DAC output. For DP1.2 input NCS8822 supports 1-lane/2-lane, also support lane swap and P/N swap. For VGA output NCS8822 Maximum support to WUXGA (1920*1200@RB) and above at 60Hz frame rate. NCS8822 provides high picture quality. All the functions pack into a small 4mm*4mmQFN32 package which saves the precious space in mobile devices.
産品參數
• VGA Output
• Up to WUXGA (1920*1200@RB) @60Hz supported
• Triple 8 Bit DAC (digital to analog converter) with clock up to 160MHz
• DisplayPort Input
• VESA DisplayPort V1.2 Compliant
• Support 2-lane input, speed up to 1.62Gbps (RBR) / 2.7Gbps (HBR)
• Support lane swap and P/N swap
• Support 1-Mbps AUX channel
• Support HPD (Hot-Plug Detect)
• Built-in High-performance adaptive equalization
• Support DDC/CI
• Clock
• Embedded oscillator and there’s no need for the external crystal
• Misc
• Built-in video test pattern
• Embedded EDID
• Embedded MCU, support I2C Master and Slave up to 400-KHz.
• Power
• 3.3V system voltage
• Power consumption @1920*1200*24bit*60Hz ~ 429mW Deep-sleep mode power <1mW
• Package
• QFN-32 (4mm x 4mm) package
• RoHS Compliant
