NCS8803

  • 封裝 : QFN-56 (7mm x 7mm)
HDMI1.4 to eDP Converter w/ scaler
所屬分類
HDMI
咨詢電話:010-57158360
NCS8803
産品描述

産品描述

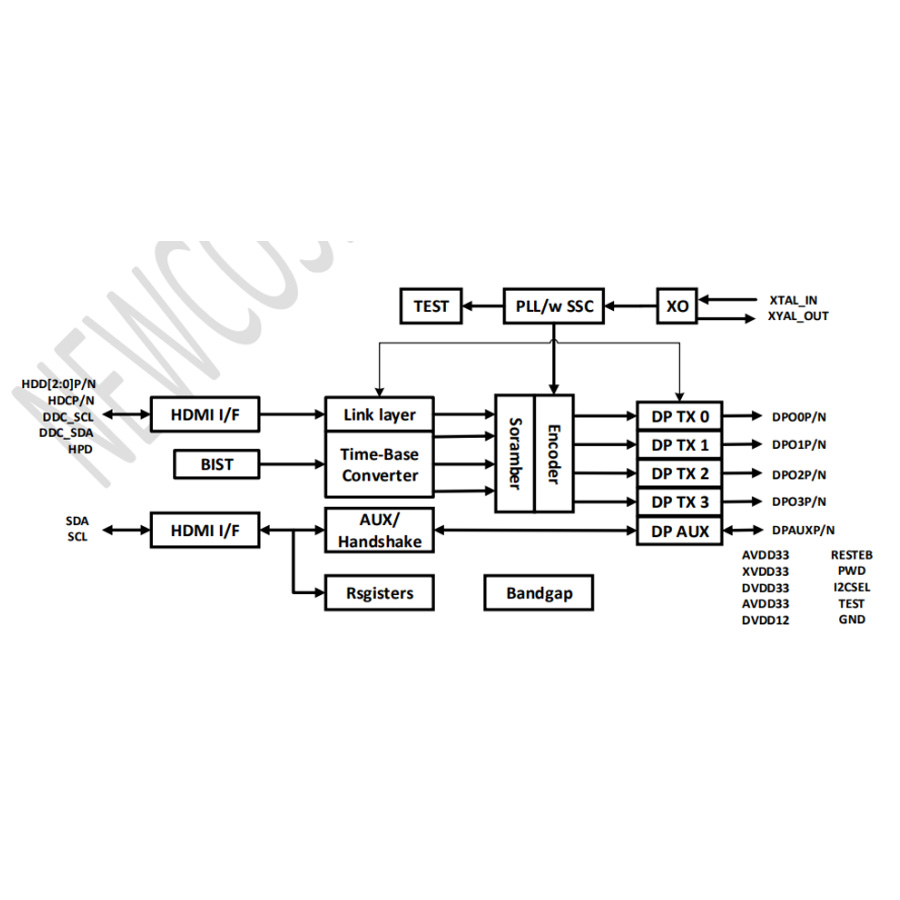

NCS8803 is a low-power HDMI-to-DisplayPort/eDP converter with advanced scaling function, fractional scaling ratio from 2:1 to 1:2, which is designed for mobile devices including tablets, laptops, monitor, etc. to support high-definition DP/eDP displays.  NCS8803 supports 4-lane DP/eDP output which is typically required to support WQXGA (2560*1600) and above at 60Hz frame rate.  NCS8803 Minimum support to XGA (1024*768@60Hz) fail safe mode.  Thanks to our proprietary scaling algorithm, NCS8803 provides high picture quality. All the functions pack into a small 7mm*7mmQFN56 package which saves the precious space in mobile devices.

産品參數

Embedded-DisplayPort (eDP) Output

1/2/4-lane eDP @ 1.62/2.7Gbps per lane HD to WQXGA (2560*1600) supported Up to 6dB pre-emphasis

HDMI Input

HDMI 1.4a supported

RGB444/YCbCr444/YCbCr422 supported

Pixel clock up to 320MHz

2-channel audio supported

Support Hot-Plug Detect

Adaptive equalization

Reference Clock

Any freq. between 19MHz and 100MHz Crystal or single-ended clock input Built-in 5000ppm SSC generator



Misc

I2C for chip configuration

Built-in eDP handshake protocol

I2C-AUX channel for TCON/DPCD/EDID

control

Built-in video test pattern

Power

1.2V core supply w/o scaler

1.35V core supply w/ scaler

2.5V or 3.3V IO supply

Power consumption

 ~ 429mW @ 1920*1080*60Hz w/o scaler

~ 626mW @ 1920*1080*60Hz w/ scaler

Deep-sleep mode power <1mW

Package

QFN-56 (7mm x 7mm) package

RoHS Compliant
